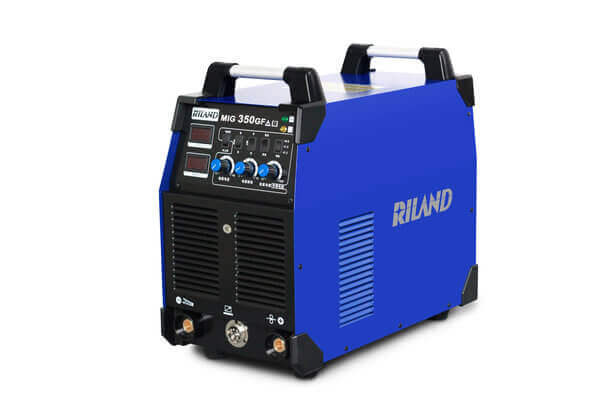

Rugged MIG 350 GF

The Power MIG 350/500GF series have excellent performance which is your best economical choice.

Lights

MIG 350 GF
Lights

Wires Seeder
Processes MIG
Stick Flux-Cored Gouging
Heavy Industratial
OutputInput

CV/CC  DC3 phase 50/60 Hz

Basic Unit Includes

  • 1 PC Inverter Power source
  • 500A stick electrode holder, 4m cable with Euro plug
  • 3m QTB-350A gun and cable assembly (MIG 350GF).
  • 4m work cable and 500A clamp with Euro plug (MIG 350GF).
  • 1P 220V/380V, 3m input cable without plug.
  • 1 set Japanese type wire feeder.

Key Options

  • Helmet
  • Euro type wire feeder
  • IGBT Technology,the core adapts advanced IGBT inverter device.
  • Infinite Voltage Control with optimized starting performance.
  • Inductance Control for arc stability and spatter control.
  • Digital Meters - Voltage and Amperage;Preview and Hold capability.
  • Wire size and type selection,Help you match the welding parameters quickly.
  • Dust-Free cooling system,Enhance higher duty cycle.
  • Trigger Control - 4T (Latch) eliminates operator fatigue..
  • Overload Protection - Shuts down the power source to protect the internal electrical components from overheating..

Classification table.

Model Input voltage/Phase/Frequency Output current/Voltage/Duty Circle Amps Input at Rated Output Output range/OCV Dimension Weight
MIG350F 380V/3P/50-60 Hz MIG:350A/31.5V/35%@40oC
250A/26.5V/100%@40o C
MMA:350A/34V/30%@40oC
250A/30V/100%@40o C		 25.8A@350A 60-350A/61V 512*262*468(mm) 30Kg
MIG500F 380V/3P/50-60 Hz MIG:450A/36.5V/40%@40oC
355A/31.7V/100%@40o C
MMA:450A/38V/30%@40oC
355A/34.2V/100%@40o C		 31.8A@450A 60-450A/61V 515*262*468(mm) 30Kg


Lights

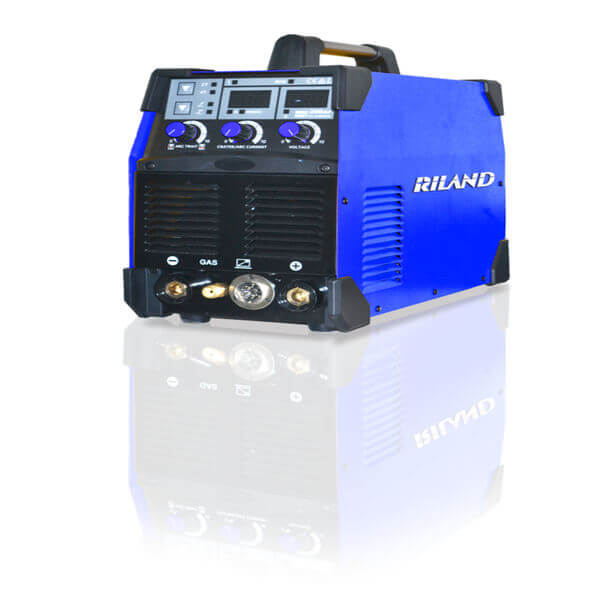

Power MIG 250 GF
Lights

Power MIG 250 GF

Power MIG 250 GF

Feature Description
  • 1 PC inverter power source
  • 3m MIG-24 gun and cable assembly
  • 300A stick electrode holder, 3m cable with Euro plug.
  • 3m work cable and 300A clamp with Euro plug.
  • 3p 380V, 3m input cable without plug.

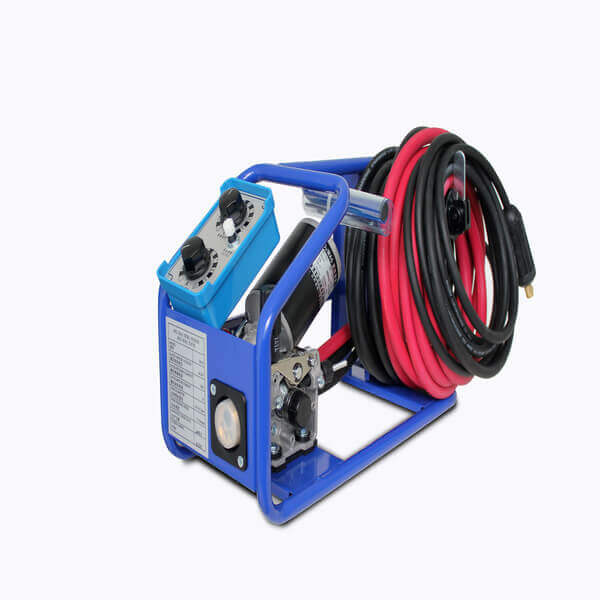

  • 1set Euro type wire feeder.

Key Options

  • Helmet
  • Welding Cart

Classification table.

Model Input voltage/Phase/Frequency Output current/Voltage/Duty Circle Amps Input at Rated Output Output range/OCV Dimension Weight
MIG250GF 380V/3P/50-60 HZ 250A/26.5V/30%@40oC
180A/23V/100%@40o C		 12A @ 250A MIG
13.2A@250A(MMA)		 40-250A/56A
60-250A/56A		 468*245*478 (mm) 17.3Kg
